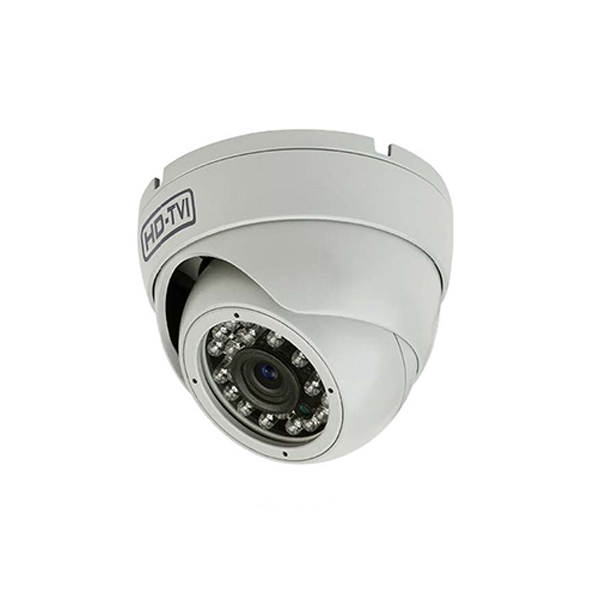

TCE-E1-3 Xivue 3.6mm 720p Outdoor IR Day/Night Eyeball HD-TVI Security Camera 12VDC

Specifications

Video

• Image Sensor - 1/3" CMOS
• Effective Pixel - 1280 (H) x 720 (v)
• Scanning System - Progressive
• Min. Illumination - 0.01 Lux @(F1.2, AGC ON) , 0 Lux with IR
• Video Frame Rate - 720p@25fps / 720p@30fps
• S/N Ratio - More Than 52dB
• HD Video Output - 1 Analog HD Output

Lens

• Focal Length - 3.6mm , Fixed
• Angular Field of View - 92.6°

Operational

• Synchronization - Internal Synchronization
• Day & Night - AUTO (ICR)
• Shutter - 1/25(1/30)s to 1/50,000s
• IR Distance - Upto 35ft. (IR LED : 24ea

Environmental

• Operating Temperature / Humidity - 90% or less (non-condensing)
• Ingress Protection - IP67

Electrical

• Power Supply - DC12V 110 mA(CDS ON : 380 mA)
• Cable Distance - RG59 - Up to 500 ft.

Mechanical

• Color / Material - Gray / Outdoor (Metal)
• Dimensions - 93mm(W) x 80mm(D)
• Weight - Appx. 250g

TCE-E1-3 Datasheet
