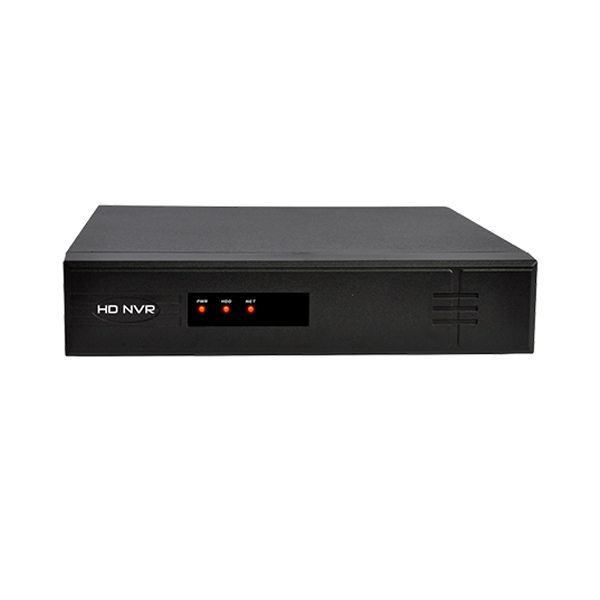

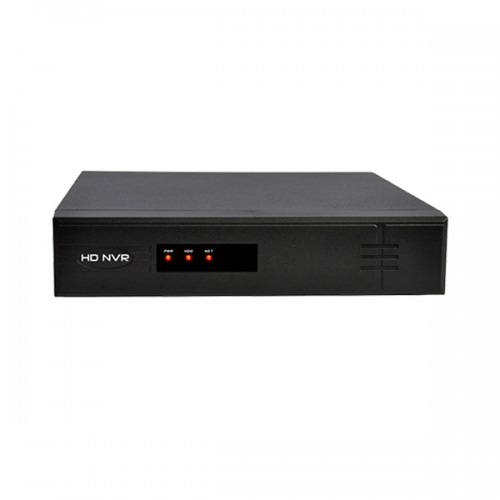

PN-E4 Xivue 4 Channel NVR 80Mbps Max Throughput - No HDD w/ Built-in 4-Port PoE

Available Models

• PN-E4
• PN-E4-2TB
• PN-E4-4TB

Specifications

• Video Outputs - 4
• Monitor outputs - HDMI / VGA / BNC
• Pentaplex - Live , Record , Playback , Backup and Remote Access
• IP Camera Input - 4 channels (80Mbps)
• Decoding Capability - 4 channels 30 fps @ 720p / 30 fps @ 1080p / 30 fps @ 3MP / 24 fps @ 5MP
• Support Protocol - ONVIF 2.4
• Capture - JPEG
• IP Resolution - Main Stream up to 5632 x 4224 / Auxiliary stream 4CIF
• Resolution - 5MP/3MP/1080p/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Image Encoding - Adjustable encoding quality, variable code stream/fixed code stream
• Playback Display Modes - 6ch. 1080p / 4ch. 3MP / 3ch. 4MP / 2ch. 5MP
• Dual Stream - Support
• Search Modes - Time / Calendar / Event
• Max Playback - 4 Channel
• Audio input / output - 1 / 1
• 2-Way Audio - 1st. Channel Reuse
• Audio Compression - G.711A
• Alarm In / Out - N/A
• Serial interface - RS-485
• USB 2.0 ports - 2 x USB 2.0
• Special Function - Supports Dropbox and Google Drive
• Internal HDD bays - 1 / Supports up to 4TB
• POE Function - 4 ch. (IEEE 802.3af)
• Power Supply - DC48V / 1.35A (POE)
• Power Consumption - 6W (without HDD & POE)
• Dimensions - 8.46" x 9.25" x 1.77"
• Operating Temperature - 32°F-131°F

PN-E4 Datasheet
