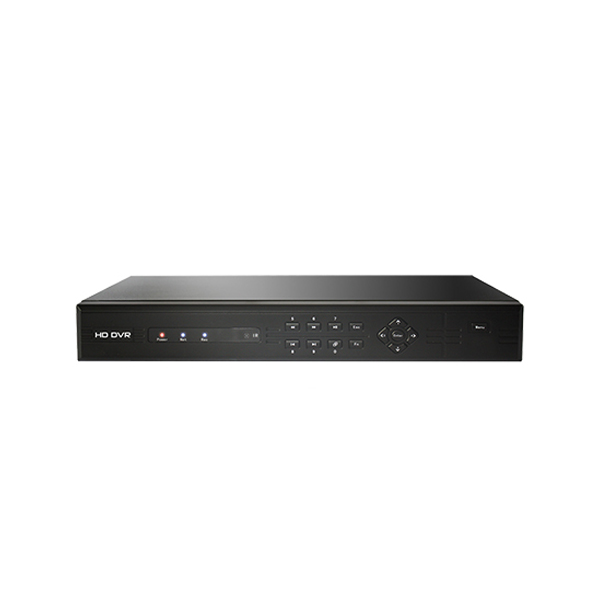

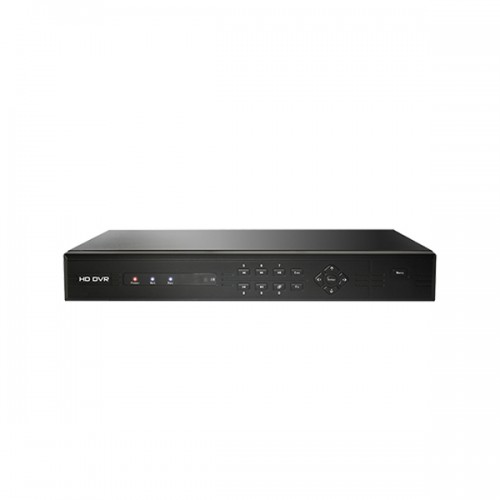

HD-TE4 Xivue 4 Channel HD-TVI or Analog DVR 120FPS @ 1080p

Click Image for Gallery

Specifications

Video inputs - 4-ch, BNC
Type of cameras supported - SD Analog(CVBS) & 720p / 1080p HD-TVI
Monitor outputs - HDMI / VGA / BNC
Video compression - H.264 HP 4.2
Recording resolutions options per channel - CIF / 4CIF / 720p / 1080p
Recording frame rate options per channel - CIF ~ 720p: up to 30fps, 1080p: up to 15fps
Recording modes - Continuous / Schedule / Alarm / Motion
Cloud Backup - Dropbox / Google Drive
Audio input / output - 1/ 1
2-way audio - 1st. Channel reuse
Audio compression - G.711
Alarm input / output - N/A
Serial interface - RS-485
Network port - 100Mb Ethernet
USB ports -2 x USB 2.0
Internal HDD bays(up to 4TB) - 1
Operating temperature - 32°F-131°F
Dimensions - 12.60" x 9.65" x 1.97" Mini 1U
Internal Power Supply - DC12 (2Amp) External Adpater
Mobile Apps - VSS Mobile (Formerly XiVue Mobile)
Desktop CMS Software - IMS300

File Name	Size	Date Added	Link
Xivue_HD-TE4_Datasheet.pdf	785.95KiB	03/10/2017	Download
Xivue_IMS300_User_Manual.pdf	3.67MiB	03/10/2017	Download
Xivue_IMS300_v.1.3.exe	53.14MiB	03/10/2017	Download
