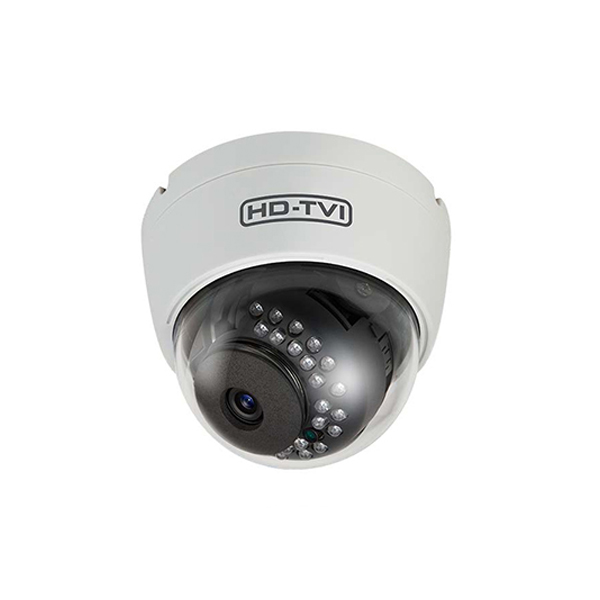

TCP-D2-21 Xivue 2.8~12mm Varifocal 1080p Indoor IR Day/Night Dome HD-TVI/Analog Security Camera 12VDC

Specifications

• Image Sensor - 1/3" CMOS
• Resolution - 1080p
• Min Illumination - Color: 1.0 lux, BW: 0.4 lux / Color DSS: 0.002 lux, BW DSS: 0.001 lux
• S/N Radio - More than 50dB (AGC off)
• Brightness - 1~20 steps
• Shutter - Auto / Munual / Flicker
• Sens-Up - Off / x2 / x4 / x6 / x8 / x10 / x15 / x20 / x25 / x30
• AGC - 1~15
• Defog - Off/Auto
• Backlight - Off / HLC / BLC
• Day & Night - Auto / Color / B/W / Ext
• White Balance - Auto / Autoext / Preset / Manual
• 3D DNR / 2D DNR - Middle / Hight / Off / Low
• Sharpeness - Off / 1~10
• Mirror - Off / V-FLIP / Mirror / Rotate
• D-WDR - Off / 0-8
• Privacy - Off / On
• Motion - Off / On
• ALC - Outdoor / Indoor
• Frame Rate - 30FPS @ 1080p / 25FPS @ 1080p
• CVBS - NTSC / PAL
• COM - 2400 / 4800 / 9600 / 19200 / 38400
• CAM ID - 0~255
• Operating Temperature - 14°F ~ 122°F
• Storage Temperature - -4°F ~ 140°F
• Lens - 2.8~12mm Varifocal
• Input Voltage - 12VDC
• IR LEDs - 24
• IR LEDs Distance - 50ft

TCP-D2-21 Datasheet
